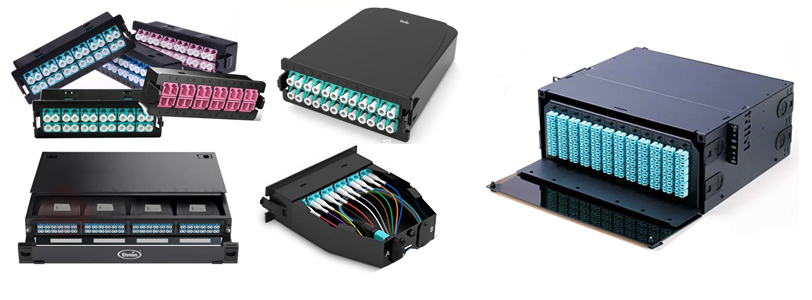

■ High density modular optical fiber distribution box with front end cable management tray
■ Suitable for LGX type adapter board or MTP/MPO pre termination box
■ 1U, 19 inch rack mounted, capable of installing 4 adapter boards or MTP/MPO pre termination boxes, mixed installation
■ 3U, 19 inch rack mount, capable of mounting 12 adapter boards or 12 MTP/MPO pre termination boxes, mixed installation
■ Can accommodate up to 24 RJ45 ports or 96 core LC ports
■ Equipment model: 1U series: S18XXX00RF01/Z/DLC
3U series: S18XXX00RF03/Z/DLC series
Product Name |
Product model |
Product Description |
unit |
pack |
Minimum order quantity |
High density modular wiring box |
S18XXX00RF01/Z/DLC |
1U height, maximum installation of 4 LGX adapter boards or 4 MTP/MPO pre termination boxes, modular distribution box, without adapter and pre termination box, empty rack |
cover |
1 pcs/box |
box |
High density modular wiring box |
S18XXX00RF03/Z/DLC |
3U height, maximum installation of 12 LGX adapter boards or 12 MTP/MPO pre termination boxes, modular distribution box, without adapter and pre termination box, empty rack |
cover |
1 pcs/box |
box |
Product model |
Product Description |
unit |
L01LCM08/Z |
ETMAN L01 adapter board with 8 LC multimode duplex adapters |
pcs |
L01LCS08/Z |
ETMAN L01 adapter board with 8 LC single mode duplex adapters |
pcs |
L01MTM08/Z |
ETMAN L01 adapter board with 8 MTRJ multimode adapters |
pcs |
L01SCA08/Z |
ETMAN L01 adapter board with 8 SC/APC single mode duplex adapters |
pcs |
L01SCS08/Z |
ETMAN L01 adapter board with 8 SC single mode duplex adapters |
pcs |
L01SCM08/Z |
ETMAN L01 adapter board with 8 SC multimode duplex adapters |
pcs |
L02FCA08/Z |
ETMAN L02 adapter board with 8 FC/APC single mode adapters |
pcs |
L02FCM08/Z |
ETMAN L02 adapter board with 8 FC multimode adapters |
pcs |
L02FCS08/Z |
ETMAN L02 adapter board with 8 FC single mode adapters |
pcs |
L02STM08/Z |
ETMAN L02 adapter board with 8 ST multimode adapters |
pcs |
L02STS08/Z |
ETMAN L02 adapter board with 8 ST single mode adapters |
pcs |
L03LQM06/Z |
ETMAN L03 adapter board with 6 LC multimode quad adapters |
pcs |
L03LQS06/Z |
ETMAN L03 adapter board with 6 LC single mode adapters |
pcs |
L03SCA06/Z |
ETMAN L03 adapter board with 6 SC/APC single mode duplex adapters |
pcs |
L03SCM06/Z |
ETMAN L03 adapter board with 6 SC multimode duplex adapters |
pcs |
L03SCS06/Z |
ETMAN L03 adapter board with 6 SC single mode duplex adapters |
pcs |
